電線束の分類としての色や、ケーブル色に合わせた馴染みやすい色を選定可能

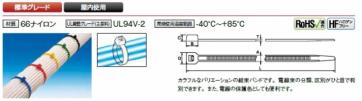

カラフルなバリエーションの結束バンドです。電線束の分類、区別がひと目で判別できます。また、電線の保護色としても便利です。

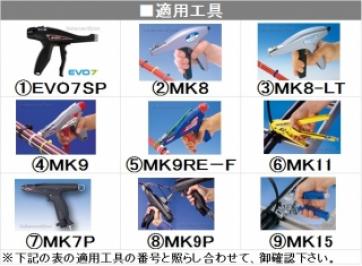

| 色 | 結束径最小（mm） | 結束径最大（mm） | 全長L（mm） | 幅A（mm） | B（mm） | C（mm） | D（mm） | T（mm） | ループ引張強度（最小値）N（kgf） | 販売単位・袋（本） | 販売単位・ケース（本） | 適用工具 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 青 | 1.0 | 16 | 80 | 2.2 | 4.4 | 3.2 | 4.2 | 1.0 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 緑 | 1.0 | 16 | 80 | 2.2 | 4.4 | 3.2 | 4.2 | 1.0 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 赤 | 1.0 | 16 | 80 | 2.2 | 4.4 | 3.2 | 4.2 | 1.0 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 黄 | 1.0 | 16 | 80 | 2.2 | 4.4 | 3.2 | 4.2 | 1.0 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 青 | 1.0 | 22 | 100 | 2.5 | 4.8 | 3.5 | 4.8 | 1.1 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 緑 | 1.0 | 22 | 100 | 2.5 | 4.8 | 3.5 | 4.8 | 1.1 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 赤 | 1.0 | 22 | 100 | 2.5 | 4.8 | 3.5 | 4.8 | 1.1 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 黄 | 1.0 | 22 | 100 | 2.5 | 4.8 | 3.5 | 4.8 | 1.1 | 80(8.16) | 1,000 | 50,000 | 1,2,3,7 |
| 青 | 1.0 | 36 | 152 | 3.5 | 5.9 | 4.4 | 6.1 | 1.2 | 135(13.77) | 100 | 20,000 | 1,2,4,5,7,8 |
| 緑 | 1.0 | 36 | 152 | 3.5 | 5.9 | 4.4 | 6.1 | 1.2 | 135(13.77) | 100 | 20,000 | 1,2,4,5,7,8 |
| 赤 | 1.0 | 36 | 152 | 3.5 | 5.9 | 4.4 | 6.1 | 1.2 | 135(13.77) | 100 | 20,000 | 1,2,4,5,7,8 |
| 黄 | 1.0 | 36 | 152 | 3.5 | 5.9 | 4.4 | 6.1 | 1.2 | 135(13.77) | 100 | 20,000 | 1,2,4,5,7,8 |
| 青 | 1.5 | 50 | 202 | 3.6 | 5.5 | 4.0 | 6.2 | 1.2 | 135(13.77) | 100 | 15,000 | 1,2,4,5,7,8 |
| 緑 | 1.5 | 50 | 202 | 3.6 | 5.5 | 4.0 | 6.2 | 1.2 | 135(13.77) | 100 | 15,000 | 1,2,4,5,7,8 |
| 赤 | 1.5 | 50 | 202 | 3.6 | 5.5 | 4.0 | 6.2 | 1.2 | 135(13.77) | 100 | 15,000 | 1,2,4,5,7,8 |
| 黄 | 1.5 | 50 | 202 | 3.6 | 5.5 | 4.0 | 6.2 | 1.2 | 135(13.77) | 100 | 15,000 | 1,2,4,5,7,8 |
| 青 | 1.5 | 50 | 202 | 4.6 | 7.3 | 5.9 | 7.6 | 1.2 | 225(22.94) | 100 | 10,000 | 1,2,4,5,7,8 |
| 緑 | 1.5 | 50 | 202 | 4.6 | 7.3 | 5.9 | 7.6 | 1.2 | 225(22.94) | 100 | 10,000 | 1,2,4,5,7,8 |
| 赤 | 1.5 | 50 | 202 | 4.6 | 7.3 | 5.9 | 7.6 | 1.2 | 225(22.94) | 100 | 10,000 | 1,2,4,5,7,8 |
| 黄 | 1.5 | 50 | 202 | 4.6 | 7.3 | 5.9 | 7.6 | 1.2 | 225(22.94) | 100 | 10,000 | 1,2,4,5,7,8 |
| 青 | 2.5 | 105 | 383 | 4.8 | 8.5 | 6.0 | 1.5 | 1.5 | 225(22.94) | 100 | 5,000 | 1,2,4,5,7,8 |
| 緑 | 2.5 | 105 | 383 | 4.8 | 8.5 | 6.0 | 1.5 | 1.5 | 225(22.94) | 100 | 5,000 | 1,2,4,5,7,8 |
| 赤 | 2.5 | 105 | 383 | 4.8 | 8.5 | 6.0 | 1.5 | 1.5 | 225(22.94) | 100 | 5,000 | 1,2,4,5,7,8 |
| 黄 | 2.5 | 105 | 383 | 4.8 | 8.5 | 6.0 | 1.5 | 1.5 | 225(22.94) | 100 | 5,000 | 1,2,4,5,7,8 |
| 青 | 1.5 | 65 | 251 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 緑 | 1.5 | 65 | 251 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 赤 | 1.5 | 65 | 251 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 黄 | 1.5 | 65 | 251 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 青 | 1.5 | 80 | 301 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 緑 | 1.5 | 80 | 301 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 赤 | 1.5 | 80 | 301 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 黄 | 1.5 | 80 | 301 | 4.8 | 9.0 | 5.0 | 8.8 | 1.5 | 270(27.53) | 100 | 5,000 | 1,2,4,5,7,8 |
| 青 | 3.0 | 100 | 382 | 7.5 | 10.8 | 6.5 | 13.0 | 1.8 | 535(54.56) | 50 | 2,500 | 4,6,8,9 |
| 緑 | 3.0 | 100 | 382 | 7.5 | 10.8 | 6.5 | 13.0 | 1.8 | 535(54.56) | 50 | 2,500 | 4,6,8,9 |
| 赤 | 3.0 | 100 | 382 | 7.5 | 10.8 | 6.5 | 13.0 | 1.8 | 535(54.56) | 50 | 2,500 | 4,6,8,9 |
| 黄 | 3.0 | 100 | 382 | 7.5 | 10.8 | 6.5 | 13.0 | 1.8 | 535(54.56) | 50 | 2,500 | 4,6,8,9 |
| 型番 |
|---|
| T18S-BLU |
| T18S-GRN |
| T18S-RED |
| T18S-YLW |
| T18R-BLU |
| T18R-GRN |
| T18R-RED |
| T18R-YLW |
| T30R-BLU |
| T30R-GRN |
| T30R-RED |
| T30R-YLW |
| T30L-BLU |
| T30L-GRN |
| T30L-RED |
| T30L-YLW |
| T50R-BLU |
| T50R-GRN |
| T50R-RED |
| T50R-YLW |
| T50L-BLU |
| T50L-GRN |
| T50L-RED |
| T50L-YLW |
| T60S-BLU |
| T60S-GRN |
| T60S-RED |
| T60S-YLW |
| T60R-BLU |
| T60R-GRN |
| T60R-RED |
| T60R-YLW |
| T120R-BLU |
| T120R-GRN |
| T120R-RED |
| T120R-YLW |
